LEGACY MODEL – 46 CM DESIGNER COLUMN FREEZER WITH ICE MAKER – PANEL READY

Descriere

OVERVIEW

Designed to seamlessly merge with your décor, Sub-Zero integrated products have no visible grilles or hinges, making it possible for your refrigeration to be indistinguishable from other cabinets and drawers around it. The 457mm wide ICBIC-18FI All Freezer Column provides 226 litres of storage space engineered to keep air dry, which prevents frost and freezer burn. To aid internal organisation, five adjustable door shelves accompany three adjustable wire shelves and three storage drawers. Additionally, an automatic ice maker includes a “max ice” command, which allows for increased on-demand production of purified ice by up to 30 percent for 24 hours. Choose from either a stainless-steel fascia panel with tubular or pro style handle, or a custom panel to match surrounding furniture.

MODEL OPTIONS

ICBIC-18FI-LH
ICBIC-18FI-RH

SPECIFICATIONS

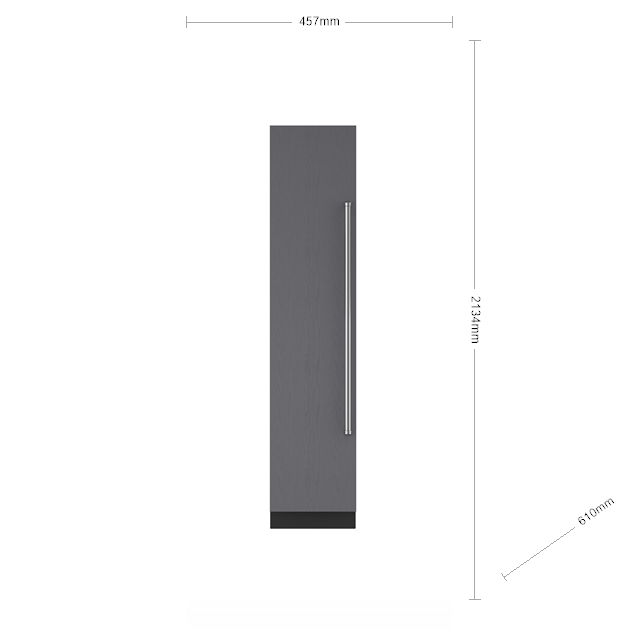

Width (mm) 457
Height (mm) 2134
Depth (mm) 610
Freezer Gross Capacity (L) 274
Freezer Storage Capacity (L)** 226
Temperature Zones 1

**Usable volume based on IEC 62552:2007 and ISO 15502.

FEATURES

All-freezer storage solves capacity problems
Smart-touch controls for streamlined access to more settings
Soft-on LED lights for varying degrees of brightness
Automatic ice maker with „max ice” feature
Water-filtration system for ice reduces contaminants, chlorine taste and odor
Uniform 2134 mm height

TECHNICAL SPECIFICATIONS

European Energy Class A+
Energy Use (kWh/yr) 308
Voltage (V) 220-240
Electrical Load (A) 16
Frequency (Hz) 50/60
Noise Level (dB) 46
Weight (KG) 118

ACCESSORIES

Stainless Steel Kickplate
Dual Installation Kit
Stainless Steel Side Panel
Stainless Steel Top Panel
Water Filter 4204490
